Stainless steel round tube 304
Detail

STAINLESS STEEL WELDED ROUND TUBE


PRODUCT       FEATURES

Welded 304 Stainless Steel round tube/  tubing is less costly than seamless or welded-and-drawntubing, and requires less stock removal in machining applications. It can alsobe produced with extremely thin walls. 304 stainless steel is the mostversatile and widely used of stainless steel grades, due to its combination ofcorrosion resistance, formability, and ductility.


TECHNIQUE:Coldrolled stainless steel

-------------------------------------------------------------------------------------
STANDARDS: AISI,ASTM,DIN,JIS,GB,EN

-------------------------------------------------------------------------------------
AVAILABLE GRADE : 201,202, 304, 304L, 316, 316L,409, 430

-------------------------------------------------------------------------------------

AVAILABLE SURFACE: 180G, 320G, 400G, 500G, 600G, Satin, Hairline

-------------------------------------------------------------------------------------

PACKAGE:   Standard Export Packing or according to customer’s requests

-------------------------------------------------------------------------------------

APPLICATION: Decoration, Construction, Upholstery, Water supplying,Handrail,Railing, Staircase, Door, Window, Balcony, Fence, Bench, Furniture etc

-------------------------------------------------------------------------------------

ORIGIN: JHSCO,BAO STEEL, TISCO, LISCO

-------------------------------------------------------------------------------------

CHEMICAL COMPOSITONS

ASTM

Chemical  Composition(%)

C

Si

Mn

P

S

Cr

Ni

Mo

Others

201

≤0.150

≤1.00

8.5-10.0

≤0.060

≤0.030

14.00-16.00

≥0.80


N≤0.25

202

≤0.150

≤1.00

7.5-10.0

≤0.060

≤0.030

17.00-19.00

4.00-6.00


N≤0.25

301

≤0.150

≤1.00

≤2.00

≤0.065

≤0.030

16.00-18.00

6.00-8.00



304

≤0.080

≤1.00

≤2.00

≤0.045

≤0.030

18.00-20.00

8.00-10.50



304L

≤0.030

≤1.00

≤2.00

≤0.045

≤0.030

18.00-20.00

8.00-12.00



316

≤0.08

≤1.00

≤2.00

≤0.045

≤0.030

16.00-18.00

8.00-12.00

2.00-3.00


316L

≤0.030

≤1.00

≤2.00

≤0.045

≤0.030

16.00-18.00

10.00-14.00

2.00-3.00


430

≤0.120

≤1.00

≤1.00

≤0.040

≤0.030

16.00-18.00





MECHANICAL PROPERTY

ASTM

Tensile strength

Yield strength

Elongation

Hardness

MPa

MPa

%

HRB

201(1%Nil)

≥655

≥310

≥40

≤100

202

≥620

≥260

≥40

≤100

304

≥515

≥205

≥40

≤92

304L

≥482

≥170

≥40

≤88

316

≥515

≥205

≥40

≤95

316L

≥485

≥170

≥40

≤95

430

≥450

≥205

≥22

≤80


SURFACE FINISH

Item

Round  Tube

Square & Rectangular Tube

Finish

Description

Finish

Description

Surface finish

Mill Finish

As welded

Mill Finish

As welded

180#

Buffed after  Polishing by 180#

180#

Buffed after  polishing by 180#

400#

Buffed after  Polishing by 400#

400#

Buffed after  polishing by 400#

600#

Buffed after  Polishing by 600#(mirror)



180# Hairline

Hairline  finished after polishing 180#

180# Hairline

Hairline  finished polishing by 180#

400# Hairline

Hairline  finished after polishing 400#

400# Hairline

Hairline  finished polishing by 400#

Titanium  coating


Titanium  coating




STAINLESS STEEL SOLUTION ANNEALING CONDITION

GB

ASTM

JIS

Type

Solution  annealing

Type

Solution  annealing

Type

Solution  annealing

0Cr19 N19

1010-1150

TP304

1040-1150

SUS304

1010-1150

00Cr19 Ni11

Water quenching

TP304L

Water quenching

SUS304L

Water quenching

0cr17 Ni12Mo2


TP316


SUS316


00Cr17 Ni14mo2


TP316L


SUS316L

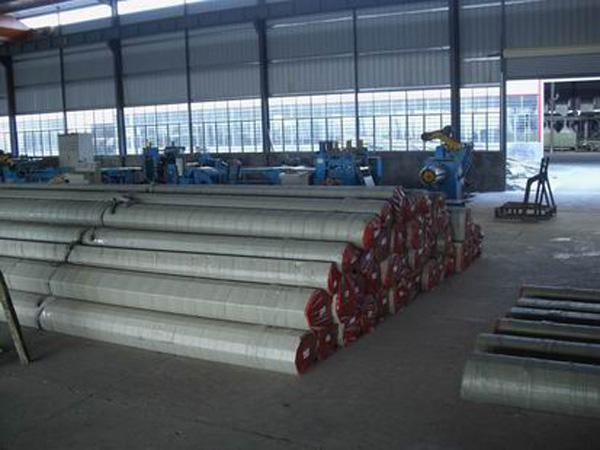

stainless steel tube pipe packing

STAINLESS STEEL TUBE AND PIPE WEAVE BUNDLE PACKING

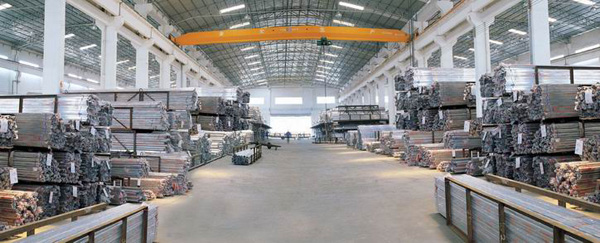

stainless steel pipe warehouse stockist

STAINLESS STEEL PIPE WAREHOUSE

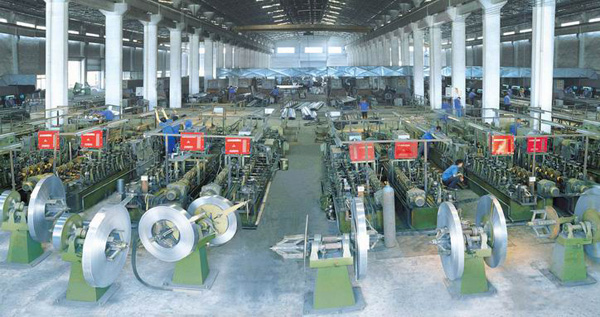

stainless steel tube making machine workshop

STAINLESS STEEL TUBING AND PIPE MAKING WORKSHOP
